 SEL  EVENT #   890   in NOAA AR  1959
Date:   2014, Jan 18
Start Time   1932  UT;  Max Time   1942  UT;  End Time   1959   UT
Coordinates:   S22E81
Flare type:   X-ray flare   and   Optical flare observed in H-alpha
Additional:
GOES X-ray Class:   C2.3    ( Integrated flux from start to end:  2.7E-03  )
Optical:   SF

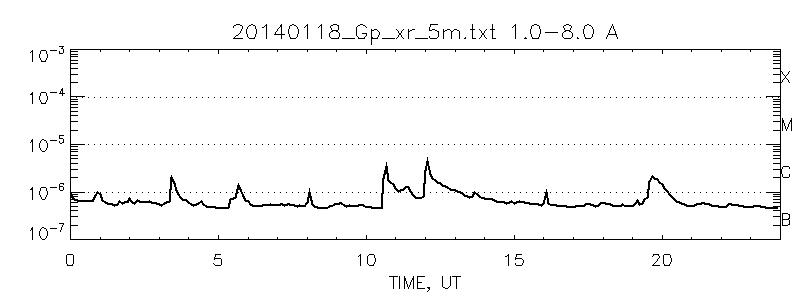

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.
|  |  |  |
|  |  |  |
