SEL EVENT # 4730 in NOAA AR 1928
Date: 2013, Dec 22
Start Time 2029 UT; Max Time 2034 UT; End Time 2039 UT
Coordinates: S18W56
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C6.1 ( Integrated flux from start to end: 2.1E-03 )
Optical: SF

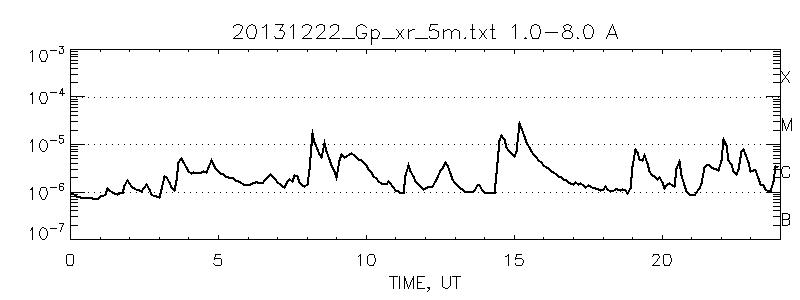

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.
