Global H-alpha Network

SEL EVENT # 8440 in NOAA AR 1800
Date: 2013, Jul 28
Start Time 1957 UT; Max Time 2003 UT; End Time 2007 UT
Coordinates: S08W66
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C1.6 ( Integrated flux from start to end: 6.3E-04 )
Optical: SF

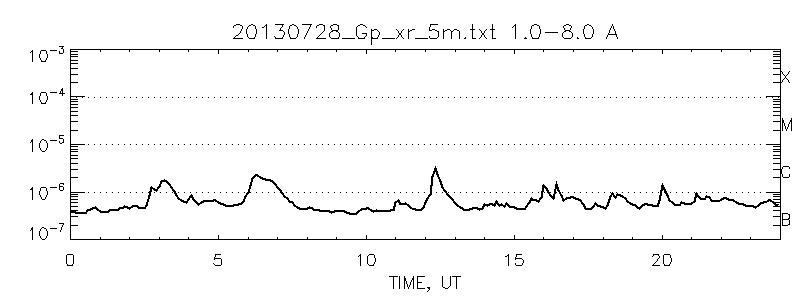

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Sun Jul 28 20:03:18 2013
Please, send questions and comments to Vasyl Yurchyshyn
