Global H-alpha Network

SEL EVENT # 8850 in NOAA AR 1594
Date: 2012, Oct 19
Start Time 1842 UT; Max Time 1851 UT; End Time 1901 UT
Coordinates: S25E15
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C1.7 ( Integrated flux from start to end: 1.6E-03 )
Optical: 1F

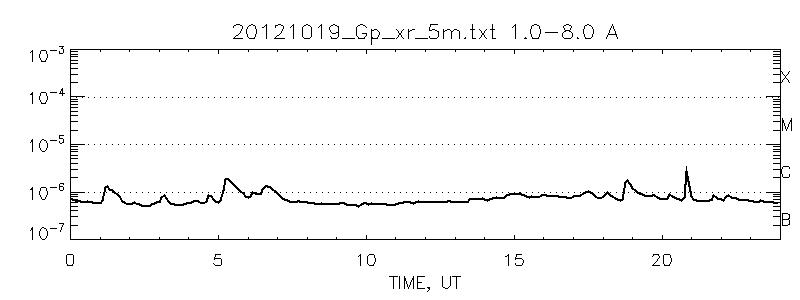

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Fri Oct 19 20:00:47 2012
Please, send questions and comments to Vasyl Yurchyshyn
