SEL EVENT # 5990 in NOAA AR 1515
Date: 2012, Jul 03
Start Time 2014 UT; Max Time 2017 UT; End Time 2019 UT
Coordinates: S13W15
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C3.5 ( Integrated flux from start to end: 5.6E-04 )
Optical: SF

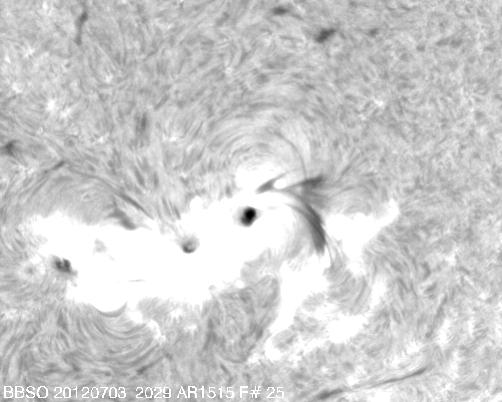

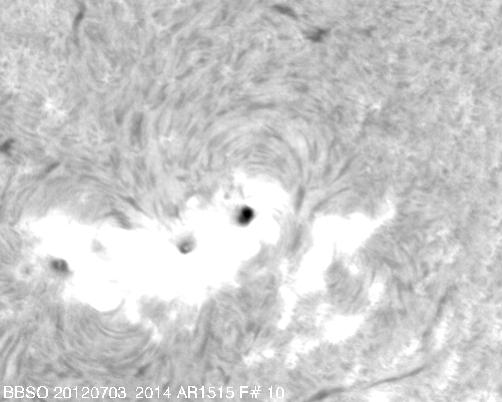

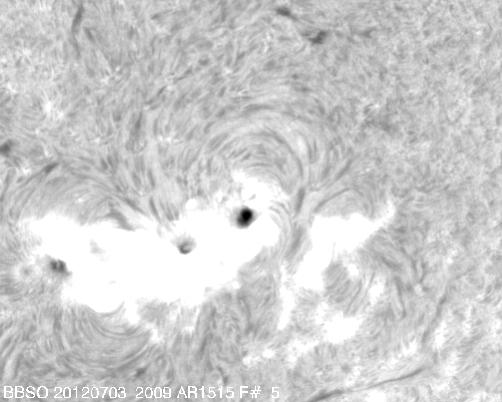

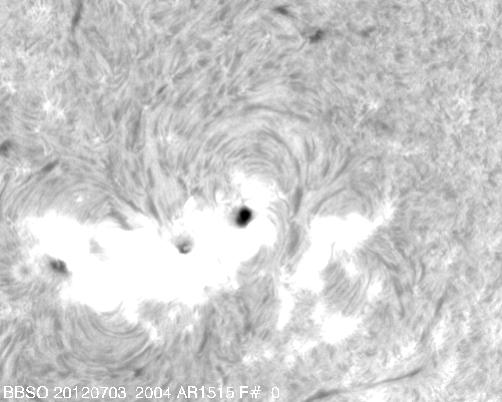

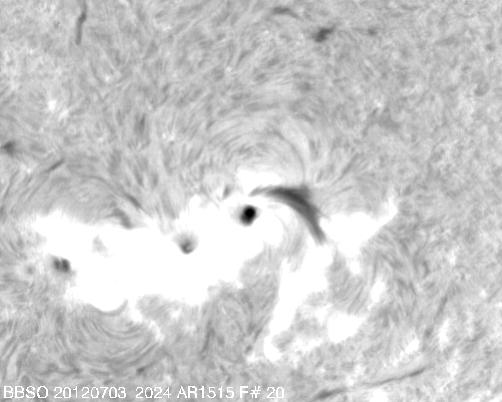

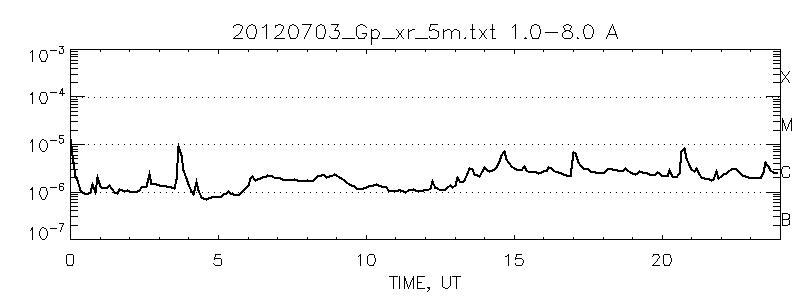

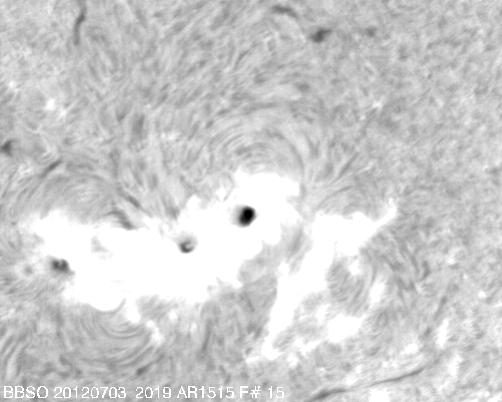

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
