Global H-alpha Network

SEL EVENT # 6800 in NOAA AR 1493
Date: 2012, May 31
Start Time 1736 UT; Max Time 1740 UT; End Time 1742 UT
Coordinates: N13E69
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C1.4 ( Integrated flux from start to end: 3.0E-04 )
Optical: SF

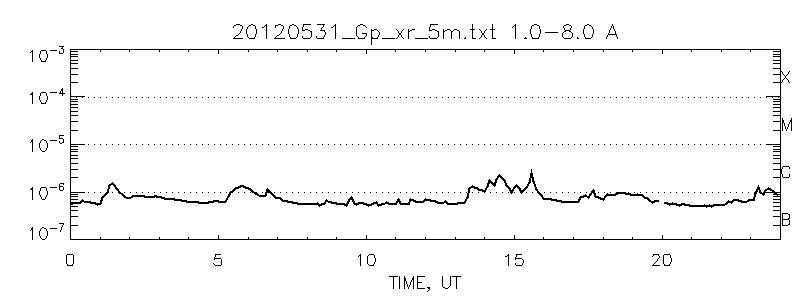

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Thu May 31 20:02:19 2012
Please, send questions and comments to Vasyl Yurchyshyn
