Global H-alpha Network |
SEL EVENT # 2460 in NOAA AR 1476
Date: 2012, May 09
Start Time 1626 UT; Max Time 1642 UT; End Time 1645 UT
Coordinates: N09E24
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C2.1 ( Integrated flux from start to end: 1.3E-03 )
Optical: SF

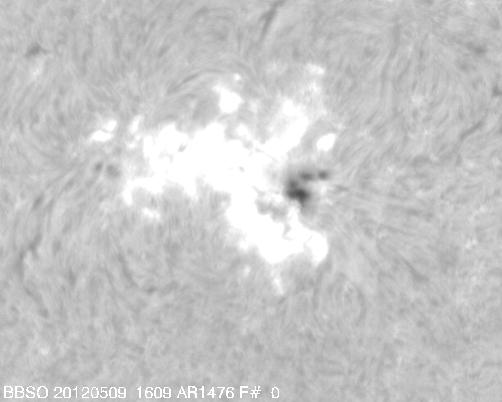

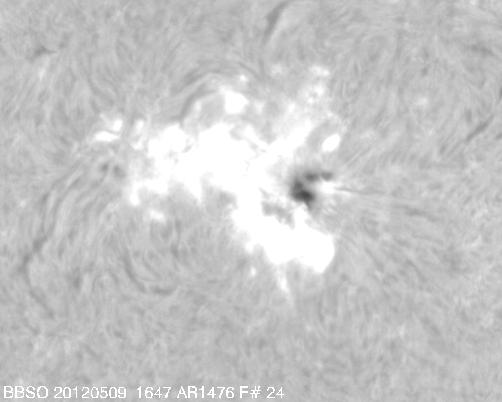

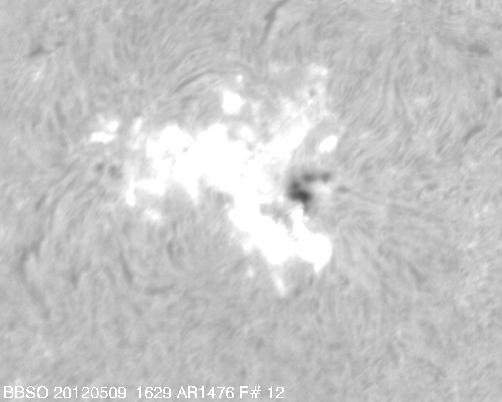

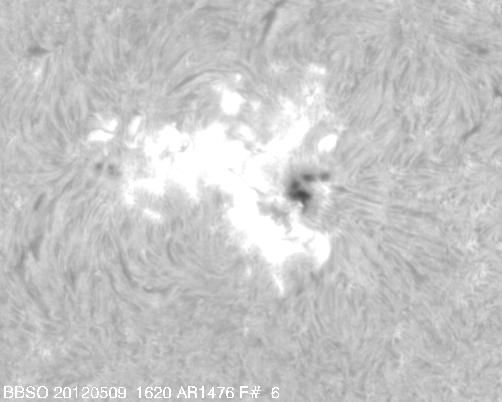

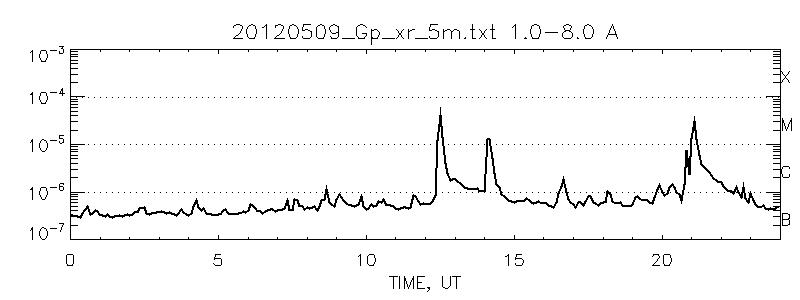

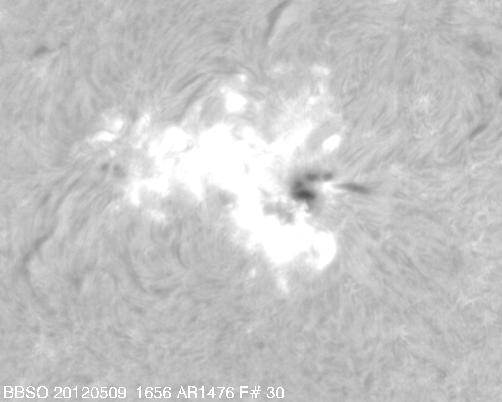

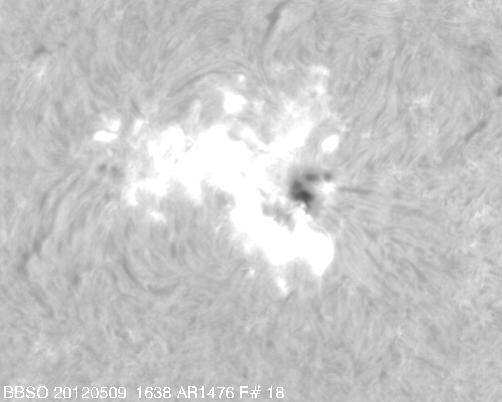

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.
