Global H-alpha Network

SEL EVENT # 5340 in NOAA AR 1450
Date: 2012, Apr 05
Start Time 1616 UT; Max Time 1624 UT; End Time 1632 UT
Coordinates: N14W30
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C3.1 ( Integrated flux from start to end: 1.7E-03 )
Optical: 1F

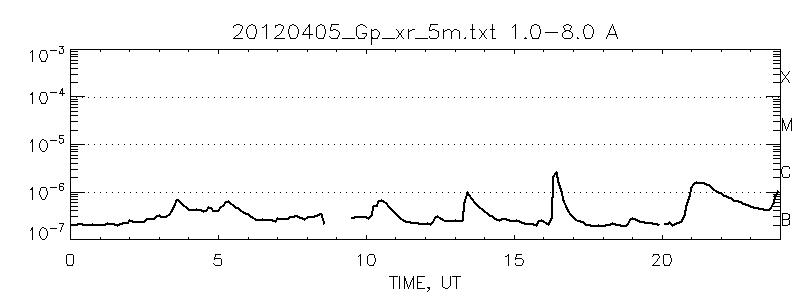

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Thu Apr 5 20:00:52 2012
Please, send questions and comments to Vasyl Yurchyshyn
