SEL EVENT # 5130 in NOAA AR 1390
Date: 2012, Jan 06
Start Time 1716 UT; Max Time 1719 UT; End Time 1722 UT
Coordinates: N11W82
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C1.4 ( Integrated flux from start to end: 2.6E-04 )
Optical: SF

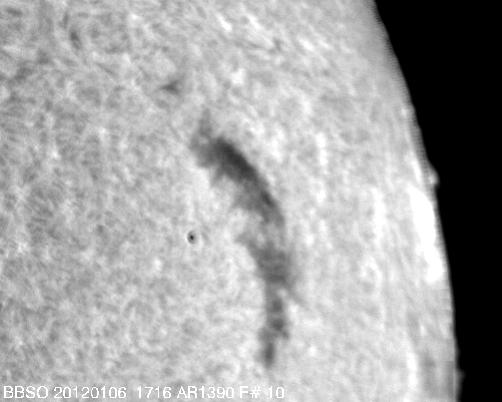

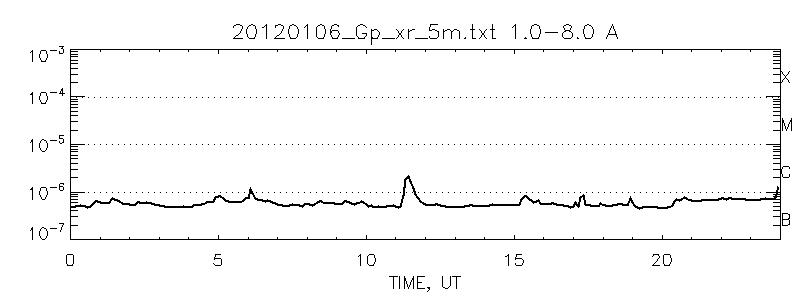

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
