SEL EVENT # 220 in NOAA AR 1324
Date: 2011, Oct 19
Start Time 1955 UT; Max Time 1958 UT; End Time 2000 UT
Coordinates: N13E58
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C1.7 ( Integrated flux from start to end: 2.6E-04 )
Optical: SF

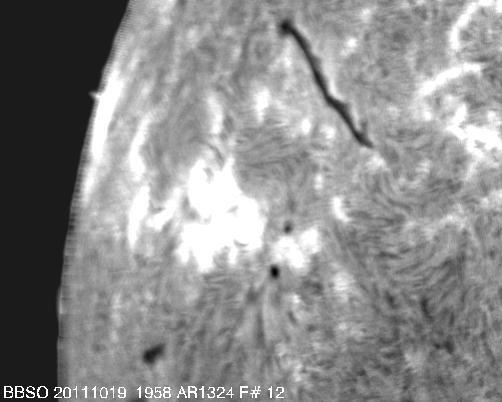

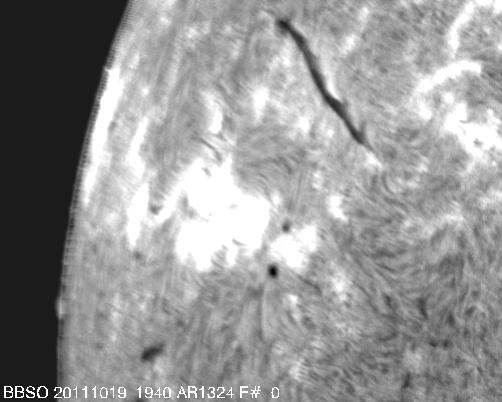

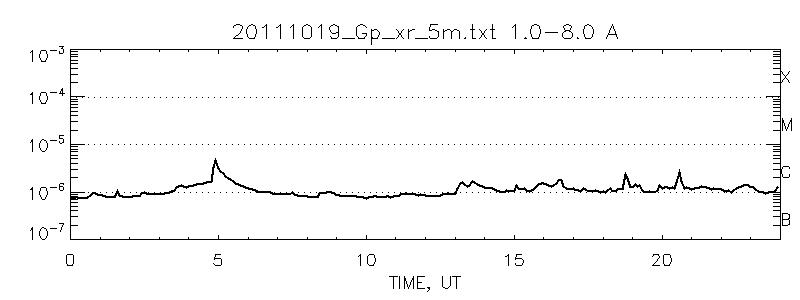

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
