Global H-alpha Network

SEL EVENT # 9740 in NOAA AR 1260
Date: 2011, Jul 27
Start Time 1548 UT; Max Time 1607 UT; End Time 1622 UT
Coordinates: N20E37
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: M1.1 ( Integrated flux from start to end: 1.3E-02 )
Optical: 1N

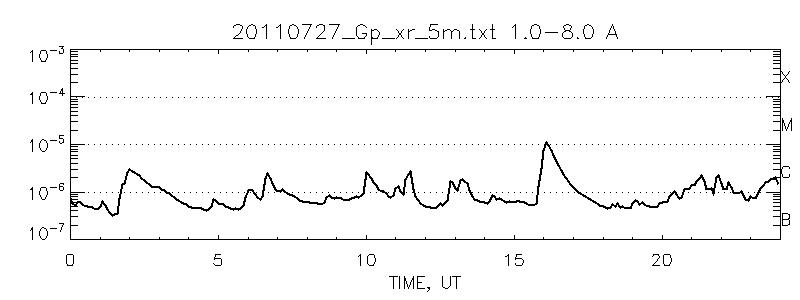

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Wed Jul 27 20:01:47 2011
Please, send questions and comments to Vasyl Yurchyshyn
