Global H-alpha Network |
SEL EVENT # 5770 in NOAA AR 0266
Date: 2003, Jan 29
Start Time 2013 UT; Max Time 2033 UT; End Time 2050 UT
Coordinates: S22W65
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C1.1 ( Integrated flux from start to end: 1.7E-03 )
Optical: SF

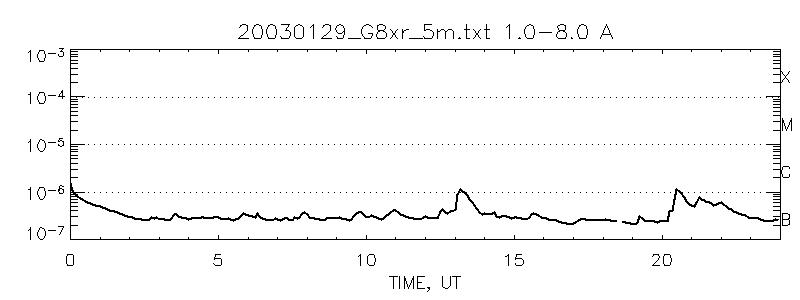

There are an MPEG movie for this event, a GOES flux plot and several snapshots.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
