SEL EVENT # 2860 in NOAA AR 0198
Date: 2002, Nov 20
Start Time 1715 UT; Max Time 1807 UT; End Time 1809 UT
Coordinates: S19E24
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: M1.4 ( Integrated flux from start to end: 1.1E-02 )
Optical: SN

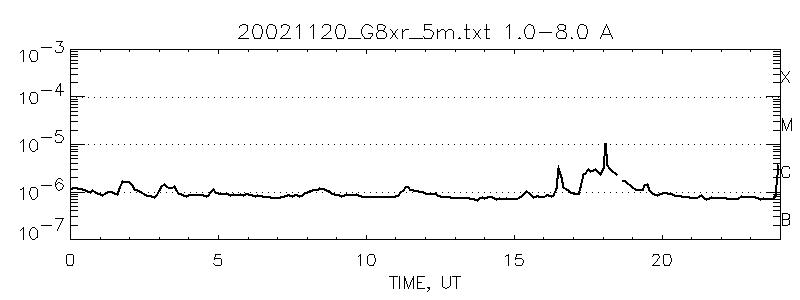

There are an MPEG movie for this event, a GOES flux plot and several snapshots.
