Global H-alpha Network |
SEL EVENT # 9960 in NOAA AR 0019
Date: 2002, Jul 05
Start Time 1550 UT; Max Time 1556 UT; End Time 1600 UT
Coordinates: S19W02
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C6.3 ( Integrated flux from start to end: 3.3E-03 )
Optical: SF

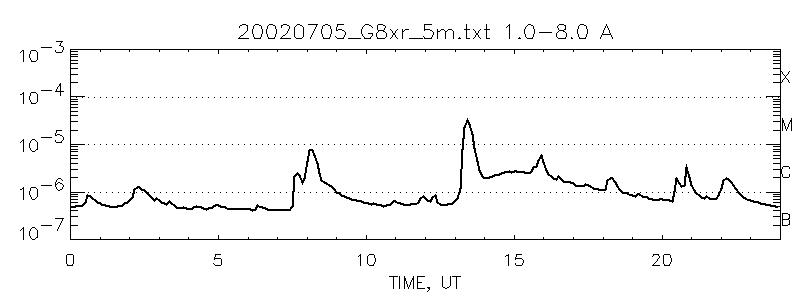

There are an MPEG movie for this event, a GOES flux plot and several snapshots.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
