Global H-alpha Network

SEL EVENT # 150 in NOAA AR 9606
Date: 2001, Sep 04
Start Time 2012 UT; Max Time 2017 UT; End Time 2022 UT
Coordinates: S19E45
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: M1.8 ( Integrated flux from start to end: 8.4E-03 )
Optical: 1N

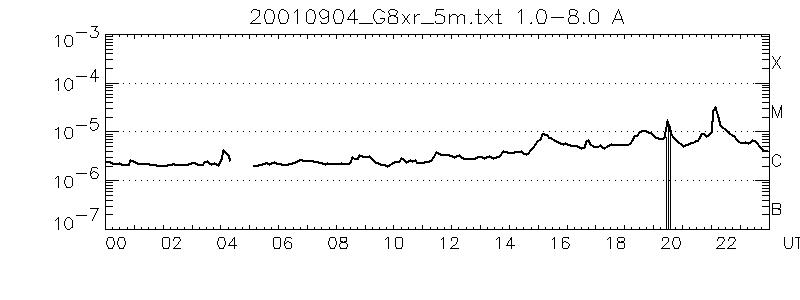

There are an MPEG movie for this event, a GOES flux plot and several snapshots.


Automaticaly Generated on Wed Sep 5 12:52:03 2001
Please, send questions and comments to Vasyl Yurchyshyn
