Global H-alpha Network |
SEL EVENT # 3310 in NOAA AR 2494
Date: 2016, Feb 06
Start Time 1933 UT; Max Time 1938 UT; End Time 1942 UT
Coordinates: S13W11
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C1.0 ( Integrated flux from start to end: 3.9E-04 )
Optical: SF

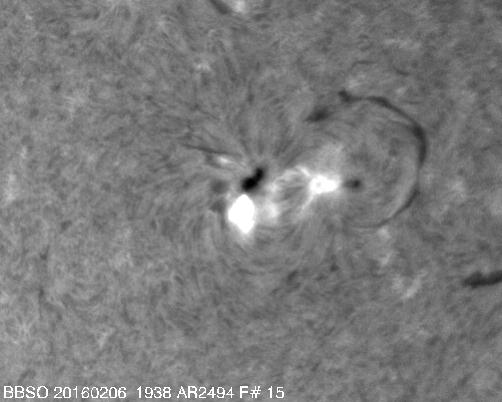

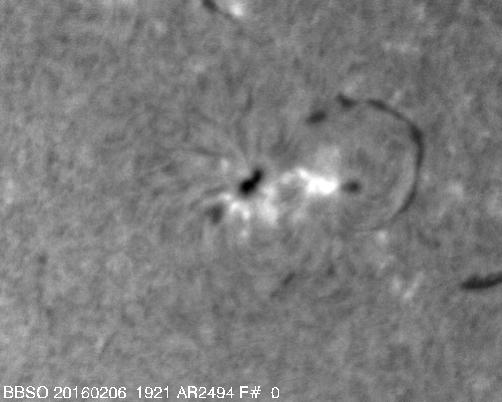

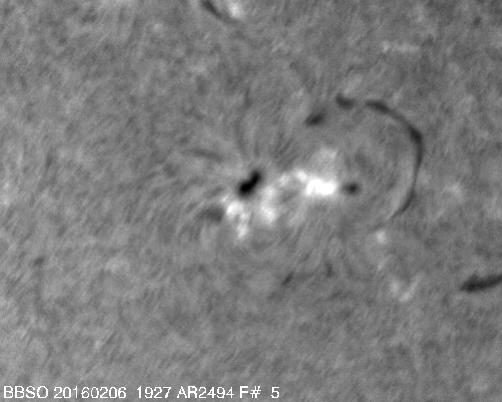

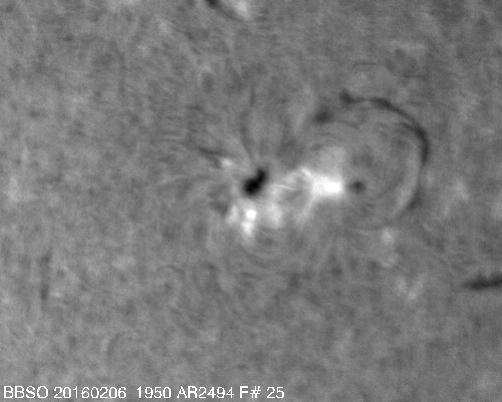

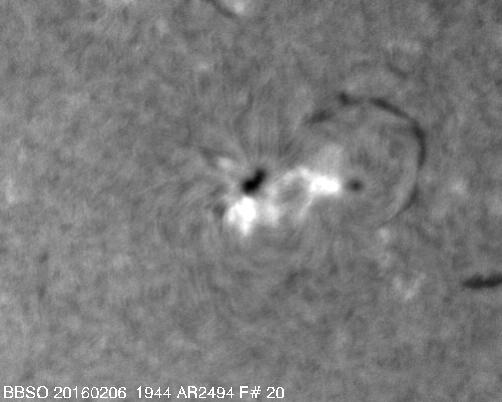

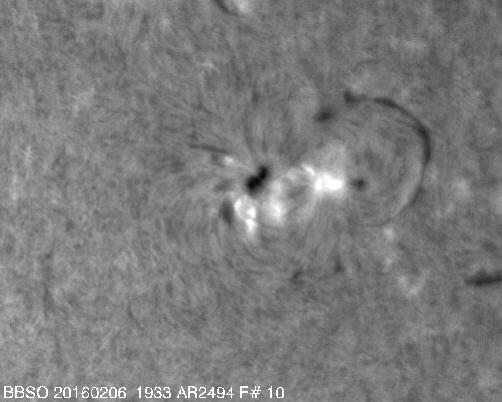

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.
